Diatomaceous earth is quarried from soft sedimentary beds that took roughly 30 million years to accumulate. Processing decides everything that follows, because heating the same rock above 800 degrees C turns edible powder into a material with 60% crystalline silica.
Quick Answer: How is diatomaceous earth mined and processed?
Diatomaceous earth is surface-mined from open pits, then crushed, air-dried and milled to a powder of roughly 5 to 150 microns. Food-grade material stops there, staying below 2% crystalline silica. Filter and pool grades go on to be calcined at 800 to 1,000 degrees C, which converts the silica into crystalline cristobalite.
Key Takeaways
- Deposits formed from diatom shells over roughly 30 million years.
- Open-pit mining removes soft rock with under 40% moisture content.
- Milling produces powder particles between about 5 and 150 microns.
- Food-grade processing holds crystalline silica below the 2% legal threshold.
- Calcining at 800 to 1,000 degrees C creates pool-grade material.
Related Products
Where Diatomaceous Earth Comes From
Diatomaceous earth begins as living algae. Diatoms pull dissolved silicon from lake and sea water to build glass-like cell walls, and when they die those shells settle into the sediment, layer after layer, until a soft chalky rock called diatomite forms over geological time.
- Freshwater deposits: lower mineral impurity, preferred for food-grade
- Marine deposits: higher salt and clay content, usually industrial
- Deposit depth: commercial beds range from 1 to 30 metres thick
- Raw moisture: freshly quarried rock can hold up to 40% water
The source deposit sets an upper limit on final purity, which is why the grade conversation starts at the quarry rather than the mill. Our full guide to food-grade diatomaceous earth explains what that specification requires.

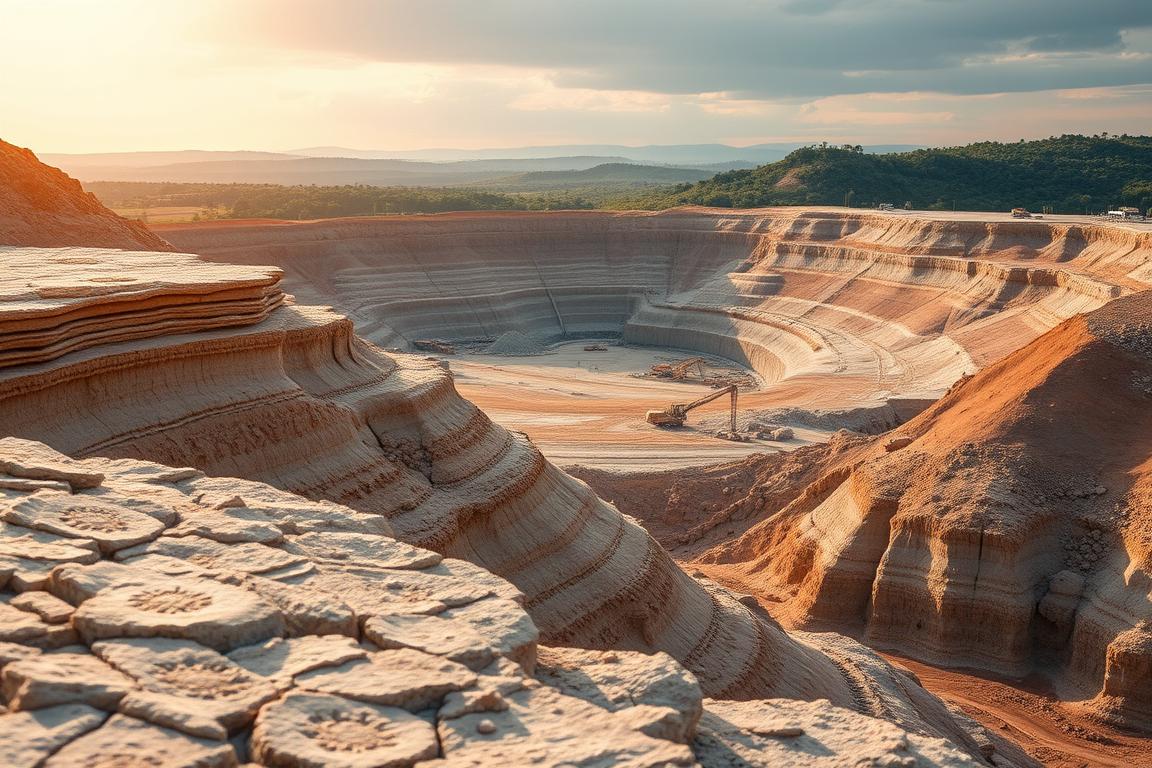

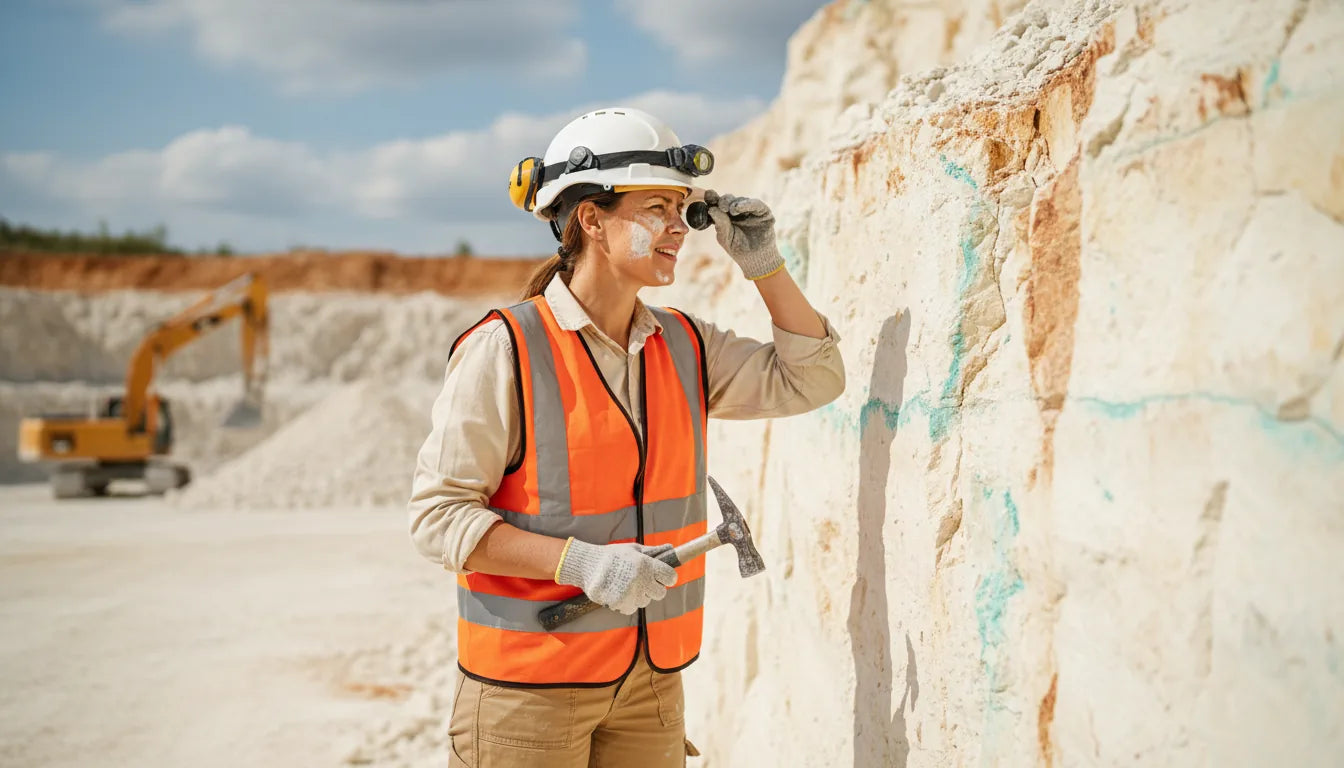

How Diatomaceous Earth Is Mined
Extraction is unusually simple because diatomite is soft. Most operations are shallow open pits worked with conventional earth-moving equipment, with no blasting needed in the deposit itself and no chemical leaching at any stage of recovery.
- Overburden of soil and waste rock is stripped and stockpiled for later reclamation.
- Diatomite is cut in benches with scrapers or excavators, following the seam.
- Material is sorted at the face by visual grade and hauled to a stockpile.
- Stockpiles are left to air-dry, dropping moisture content substantially before milling.
- Waste and low-grade rock is returned to the pit during progressive reclamation.
Nothing in that sequence changes the mineral chemistry. What arrives at the plant is the same amorphous silica the diatoms built, simply broken into handleable pieces.
Drying, Milling and Screening
The plant stage decides particle size and moisture, the two variables that most affect how a finished powder behaves. Milling breaks aggregated rock into individual and fragmented diatom shells, and screening separates that output into commercial size fractions.
| Stage | What happens | Effect on the powder |
|---|---|---|
| Crushing | Rock reduced to gravel size | Makes drying uniform |
| Drying | Heated below 600 degrees C | Silica stays amorphous |
| Milling | Hammer or roller mills | Particles of 5 to 150 microns |
| Air classification | Fines separated by airflow | Consistent grade fractions |
| Bagging | Sealed against moisture | Preserves absorbency |
Particle size matters more than most buyers realise. Powder milled too coarse sits on surfaces without clinging to insect cuticle, while material milled extremely fine becomes harder to apply without raising dust.
Calcination: The Step That Creates Pool-Grade
Calcination is the fork in the road. Roasting diatomite at roughly 800 to 1,000 degrees C hardens the particles and improves flow rate through a filter bed, but it also reorganises amorphous silica into cristobalite, a crystalline polymorph classified as a lung carcinogen.
- Natural grade: dried only, crystalline silica typically under 2%
- Calcined: roasted, crystalline content rises past 60%
- Flux calcined: soda ash added, producing the pink pool powder
- Pore structure: partially fused, cutting insecticidal performance
Occupational cohorts of diatomaceous earth plant workers were used to quantify silicosis risk, and the exposure that mattered was to the calcined product rather than the raw mineral.[1]Silicosis Risk in Diatomaceous Earth Workers — PubMed View source The consumer-facing consequences are set out in our comparison of food-grade versus pool-grade diatomaceous earth.
Quality Control and Purity Testing
Reputable producers test each lot rather than relying on the deposit alone. Two numbers do most of the work: total silica content, which should sit around 80 to 90%, and crystalline silica, which must stay under 2% for any material sold for food or feed contact.
| Test | Typical target |
|---|---|
| Total silicon dioxide | 80 to 90% by dry weight |
| Crystalline silica | Under 2%, often under 1% |
| Heavy metals | Screened for lead and arsenic |
| Moisture | Low enough to stay free-flowing |
| Particle size | Distribution across 5 to 150 microns |
A certificate of analysis is the practical proof. Our Remedy's food-grade diatomaceous earth is sold as a human supplement in 4 oz and 1.5 lb sizes with no fillers, binders or anti-caking agents added at the bagging stage.
Environmental and Worker Safety in Mining
Diatomite mining is comparatively low-impact because it needs no chemical processing and no tailings ponds. The genuine occupational hazard is airborne dust, which is managed with wet suppression, enclosed conveyors and respiratory protection programmes at the mill.
- Dust suppression: water sprays on haul roads and transfer points
- Enclosure: sealed conveyors and baghouse filtration in milling
- Monitoring: respirable silica measured against regulated exposure limits
- Reclamation: overburden returned as pits are progressively backfilled
Regulated exposure limits for respirable crystalline silica are set in micrograms per cubic metre, a reminder of how much smaller the acceptable airborne dose is than any handling quantity in a home.[2]Crystalline Silica Exposure Standard — OSHA View source
What Processing Means for the Bag You Buy
Everything upstream shows up in three practical properties: how absorbent the powder is, how well it clings to a surface, and how safe it is to breathe near. Those properties are set by the deposit, the milling and above all by whether the material was calcined.
- Absorbency: highest in uncalcined natural grade
- Cling: best with a mixed 5 to 150 micron distribution
- Respiratory risk: driven by the crystalline fraction
- Shelf life: effectively indefinite while sealed and dry
Even amorphous silica dust can irritate airways at high airborne concentrations, so a mask remains sensible regardless of grade.[3]Inhalation Hazards of Amorphous Silica — PubMed View source Application technique for each use case is covered in our step-by-step diatomaceous earth application guide.
Frequently Asked Questions
How is diatomaceous earth made? +
It is not manufactured, it is mined. Soft diatomite rock is stripped from open pits, air-dried, crushed and milled to particles of roughly 5 to 150 microns, then screened into grades. Food-grade production stops there, keeping crystalline silica under 2%.
Where is diatomaceous earth mined? +
From ancient lake and sea beds on every continent. Commercially significant deposits sit in the western United States, Europe, Asia and South America, in seams typically 1 to 30 metres thick. Freshwater deposits supply most material sold as food-grade.
Can you make diatomaceous earth at home? +
No. It is a geological material formed over roughly 30 million years, not a recipe. Home processing also cannot verify the 2% crystalline silica limit that makes a powder safe to eat, which is the single most important specification on the bag.
What does calcined diatomaceous earth mean? +
Calcined means roasted at roughly 800 to 1,000 degrees C to harden particles for filtration use. The heat converts amorphous silica into crystalline cristobalite, pushing crystalline content above 60% and making the product unsafe to eat or dust indoors.
Is diatomaceous earth mining bad for the environment? +
It is relatively low-impact. Extraction uses no chemical leaching and produces no tailings ponds, and pits are progressively backfilled with overburden. The main controls are dust suppression on haul roads and enclosed handling inside the mill.
Why does diatomaceous earth vary in colour between brands? +
Trace minerals in the source deposit shift the shade from off-white to pale grey or buff. Bright white or pink powder usually signals a calcined filter product. Colour is not a reliable grade test, so always read the stated crystalline silica percentage.
What particle size is best for diatomaceous earth? +
A mixed distribution across roughly 5 to 150 microns performs best. Coarse material fails to cling to insect cuticle, while extremely fine powder becomes hard to apply without raising airborne dust. Most food-grade product is milled toward the middle of that range.
Does diatomaceous earth contain heavy metals? +
Trace amounts occur naturally, which is why reputable producers screen each lot for lead and arsenic alongside the 2% crystalline silica check. Ask any supplier for a current certificate of analysis before using a powder internally.
How long does mined diatomaceous earth stay effective? +
Indefinitely while sealed and dry, because the mineral does not degrade. Moisture is the only real enemy: absorbed water fills the pores and removes the desiccant action until the powder dries again. Most suppliers still print a 2 to 3 year date.
Is there a difference between diatomite and diatomaceous earth? +
Diatomite is the rock as it sits in the ground; diatomaceous earth is the processed powder milled from it. Kieselguhr is an older name for the same material. All 3 terms describe the same fossil silica at different stages.
